Name: ODM Power Amplifier RF Communication Module Anti Drone NXPA25 520MHz
Brand: NENGXUN
Price: 1 USD

Brand Name : NENGXUN

Model Number : NXPA25-520MHz 100W

Place of Origin : CHINA

MOQ : 1

Price : The price is negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000

Delivery Time : 5-8DAYS

Packaging Details : 25.6*111.7*17MM

Frequency : 25HMZ-520MHz 100W

Max output Power (CW) : ≥ 50dBm

Dimensions(mm)/Weight : ≤181×79.2×26.2mm (without connectors), ≤590G

Installation method : Radiator shall be installed for power amplifier test

Contact Now

PN:NXPA25-520MHz100W

Small size, Low power consumption, good stability;
High linearity and Intermodulation;
Shape structure can be customized
Products can be developed according specification;
Widely used in Radar, Navigation, Communication, EMC test and other Civil fields.

ODM Power Amplifier RF Communication Module Anti Drone NXPA25 520MHz

Technical Data

Parameters
Frequency	25MHz~520MHz
Max output Power (CW)	≥ 50dBm
Gain	≥ 48dB (customized)
Gain Flatness	≤ 2±1dB
Input VSWR	≤ 1.6
Input power	0±2dBm
Max Input	+6dBm
Temperature protection	Over 80℃ protection,with open circuit protection
PTT port	Default off; 3.3~5V on
VCC/Current reference	28V/15A
Working voltage	+28V~ +32V
Working current	≤ 9~12.5A
Spurious	≤ -65dBc
Harmonic	≤ -10dBc harmonics Worst point
Operating Temperature	-30℃~+55℃
RF Connector	RFin-SMA-F/ RFout-N-K
Power Supply Interface	feedthru capacitor
Dimensions(mm)/Weight	≤181×79.2×26.2mm (without connectors), ≤590G
Installation method	Radiator shall be installed for power amplifier test
Package	1pcs/box

ODM Power Amplifier RF Communication Module Anti Drone NXPA25 520MHz

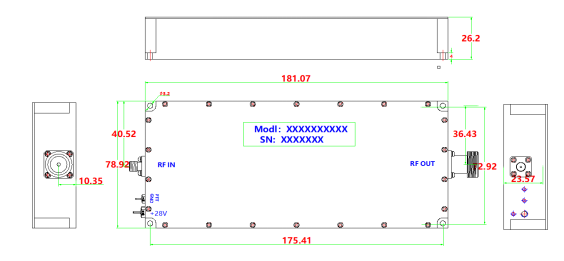

Outline Drawing

Support and Services:

RF Power Amplifier Technical Support and Services

Provide technical guidance on the installation, use and maintenance of RF Power Amplifier.
Provide troubleshooting and repair services.
Provide replacement parts and components.
Answer customer inquiries and provide product information.
Provide technical training for customers.
Provide warranty service.
